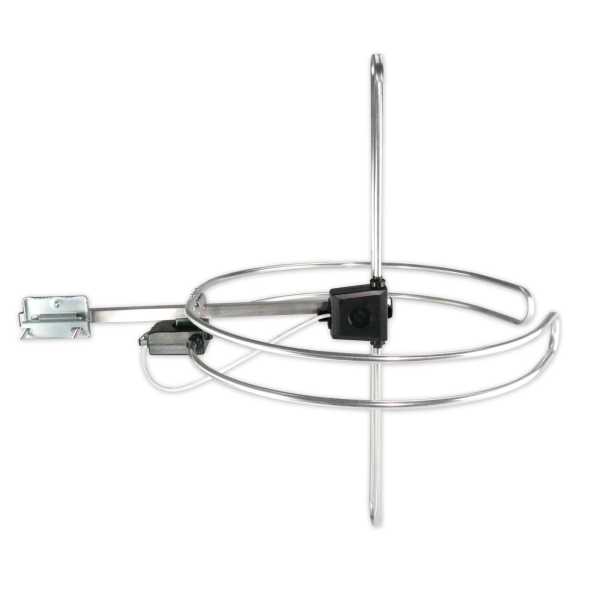

Summit DAB+ FM/F FM Ring Dipole Antenna with F-Connector

In Stock

  • DVBZUB040
  • 4043089342063
DAB Antenna Combined with FM Ring Dipole with F Connector Technical Info (FM): Channels /... more
DAB Antenna Combined with FM Ring Dipole with F Connector

Technical Info (FM):
Channels / Frequency: FM / 87.5-108 MHz
Impedance: 75 O
Elements: 1
Gain: -0.8 dB (i)
Forward / backward: 0 dB
Beam width: Horiz +/- 180°
Connection: F

Technical Info (DAB ):
Channels / frequency: DAB + / 170-240 MHz
Impedance: 75 O
Elements: 1
Gain: 2.2 dB (i)
Forward / backward: 0 dB
Beam width: Horiz +/- 90°
Connection: F

Assembly Instructions:
- Pre-assemble the antenna on a safe footprint!
- No installation of antennas during thunderstorms!
- Do not mount the antenna on roofs with a flammable roof covering (thatched, straw or similar)

Delivery:
1x FM Ring Dipole Summit DAB + FM/F Antenna
1x F Connector
1x F Sealing Grommet
Typ: DVB-T/DVB-T2/DAB+
Gewicht: 1.0 kg
