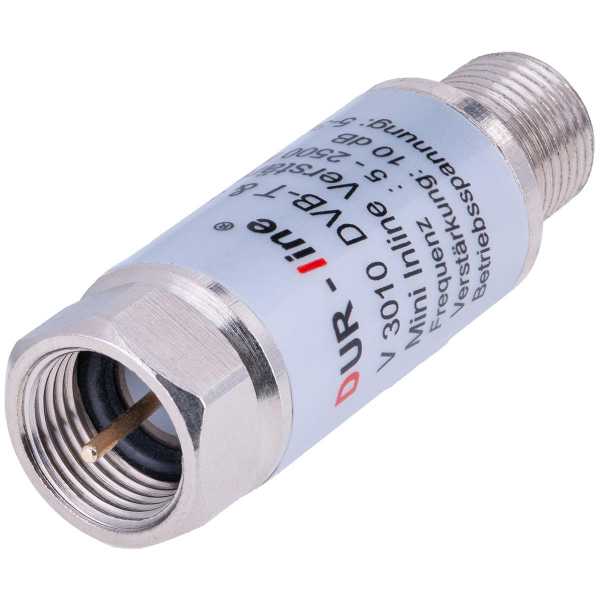

DUR-Line V3010 Mini Inline Amplifier for SAT & DVB-T (10dB Amplification, Metal Housing, 5-2500 MHz)

In Stock

  • MONSTE096
  • 4260165021722
This satellite inline line amplifier is used to compensate for line losses in long cable runs and... more
This satellite inline line amplifier is used to compensate for line losses in long cable runs and increases the signal strength by 10 dB. This amplifier is preferably always used near the LNB or the multi-switch. When using an inline amplifier with 20 dB, the picture quality often deteriorates because the receiver or multi-switch is overloaded or the cable strands are too short, you are always on the right track with this 10 dB version. With almost all known multi switches, the input signal can be amplified by 10 dB without any problems.

Features
- One Amp for Everything
- Ready for Operation from 5 V for DVB-T and SAT
- Solid Metal Body
- For Unicable

Technical Info
- Material: Solid Metal Body
- Connections: F-Connector, F-Connector
- F-Connector with Sealing Ring
- DC Pass-Through for Remote Power Supply
- Frequency Range: 5 to 2500MHz
- Impedance 75 Ohms
- Gain 10dB
- Shielding 100dB
- Digital Ready
- Return Damping Greater than 20dB
- Operating Voltage: 5 - 18V max. 30VDC/40mA
- Dimensions: Length 41mm, Diameter 14mm
- Also for Unicable

Delivery
1x DUR-Line V3010 Inline Amplifier for Satellite + DVB-T 10dB
