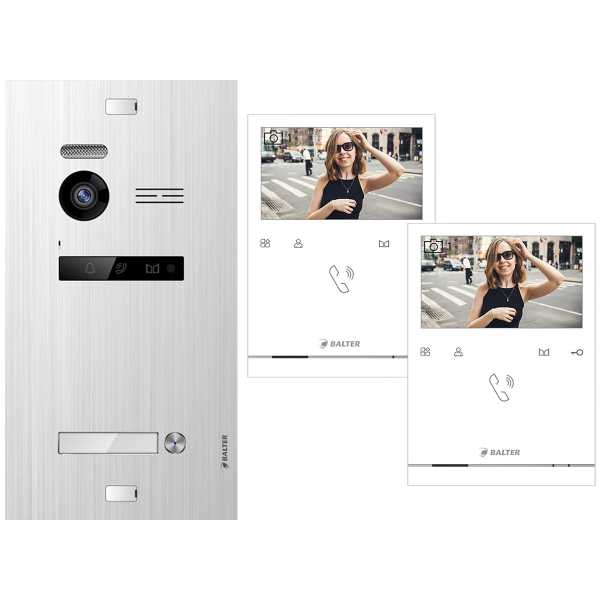

BALTER EVO Quick Video Door Intercom System Silver/White 1 Participant Set

Please choose a variant first



See immediately who is at the door: The EVO video door intercom system shows you live video of... more
See immediately who is at the door: The EVO video door intercom system shows you live video of every visitor who rings. With the help of the door intercom monitor you can see every visitor standing at the door live, so you always know who is at the door.

- Door station set for 1 family house
- Mounting type: flush-mounted (door station)
- Camera with 150° wide angle (diagonal) high resolution
- illuminated nameplate
- 2-wire BUS wiring
- Hands-free function
- Protection class IP44 (door station)
- Intercom function
- Video communication
- 4.3-inch color LCD screen (480 x 272)
- Possible connection of surveillance cameras

This put-together system for a single-family house from BALTER contains a video door intercom system with a high-resolution camera with a 150° wide-angle lens, as well as automatic day/night switching. The customizability allows you to connect different types of monitors or additional modules, such as the EVO-CAM module, which allows you to connect surveillance cameras. You can also use an electric door opener and decide who you open the door to. Installation is very simple using 2-wire technology: There is 2-wire BUS wiring where you only have a single cable with 2 wires through which video & audio data and power runs at the end. You will also receive the selected monitor, which is installed inside the house and fully utilizes every function of the door intercom. This outdoor station offers a complete solution for you and can be changed individually.

The EVO video door intercom system
A picture says more than 1000 words. This is exactly why the Balter EVO door intercom system shows you a live image of visitors - so you know immediately who is at the door. The 150-degree viewing angle built into the outdoor station wide-angle camera covers almost the entire horizontal. This way you can see visitors who are standing next to and under the camera. Even if there are several people in front of the door, you can still see everyone.

2-wire BUS technology
The built-in 2-wire BUS technology ensures easy and quick installation. Two wires are enough to transmit video and audio data as well as power at the same time. In this way, you minimize the costs and work effort when installing the door station.

Intercom function
With up to 3 additional monitors (1x master + 3x extension), you enjoy maximum comfort! Install an additional monitor in your favorite room so you can easily open the door from there and save yourself the trip down the hallway! You also have the convenient intercom function at your disposal, with which you can easily communicate between two monitors.

EVO-Quick Compact 4.3-inch Monitor
See your visitors live on the 4.3" display and open the door with a tap of your finger. Choose from 6 ringtones to personalize your experience. Of course, you can also use the intercom function with EVO-Quick and voice messages with others Replacing EVO devices.

Technical Info (Door Intercom)
- Bell button: 1
- Silver
- Protection class: IP44
- Installation: flush-mounted
- Material: Aluminum
- Hands-free function: Yes
- Illuminated nameplate: Yes
- Microphone and speakers: Integrated
- Technology: 2-wire BUS, no polarity
- Day/night switching: automatic/always on/off
- Camera module: 150° wide-angle camera, high resolution
- Viewing angle: 150-degree wide-angle lens
- Operating temperature: -20°C to +55°C
- Door opener connection on the door station: 12V DC (max. 160mA via the door station or potential-free contact)
- Power supply: 32V DC
- Power consumption: 0.8W (standby)/3W (operation)
- Front panel dimensions (WxH): 134 x 253 mm
- Dimensions of the flush-mounted box (WxHxD): 106 x 221 x 40 mm
- Weight: 685g

Technical Info (EVO-Quick 4.3 Inches)
- Display: 4.3 inch LCD
- Input voltage: 30±2V
- Display resolution: 480 x 272p
- Operating temperature: -10°C to 40°C
- Dimensions: 111 x 155.5 x 17mm (without wall mount)
- Touch buttons: speak, monitor, call up menu, press door opener 1, press door opener 2

1x Balter EVO Door Station 1 Participant, Silver
1x Balter EVO Main Power Distributor (BUS-C4001)
1x Allen Key, Screw, and Dowel Set
1x User Manual
1x Flush-Mounted Box
- Balter EVO-Quick 4.3 Inch Compact Monitor, White*
- EVO-DL Module with DIN Rail*
- DORCAS Electric Door Opener*

* The scope of delivery changes depending on the variant selected.
Farbe: Silber
Anschlüsse (Monitor): BUS
Funktionen (Monitor): Fotos verpasster Besucher sehen, Besuchernachrichten anhören, Videos aufnehmen, Unterstützt eine Etagenklingel, Interkom
Interkom-Funktion: Ja
Gewicht (Monitor): 0.2 kg
Tag/Nacht Umschaltung: Automatisch
Abmessungen (Monitor): 111mm (B) x 155mm (H) x 17mm (T)
Bildschirmgröße: 4.3 Zoll Farb-LCD
Auflösung: 480x272
Farbe (Monitor): Weiss
Befestigungsart (Monitor): Aufputz
Maximale Erweiterbarkeit: 3 (1x Master + 3x Erweiterung)
Monitor Anzahl: 1, 2, 3, 4
Modulares System: Nein
Stromversorgung (Monitor): 32V DC
Verkabelung (Monitor): 2-Draht BUS
Material (Monitor): Plexiglas
Material: Aluminium
Freisprechfunktion: Ja
Teilnehmer/Wohneinheit: 1 Familienhaus
Blickwinkel: 150 Grad Weitwinkelobjektiv
Montageart: Unterputz
Technologie: 2-Draht BUS
Kameramodul: 150° Weitwinkel-Kamera, Hochauflösend
RFID-Funktion: Nein
Beleuchtetes Namensschild: Ja
Mikrofon und Lautsprecher: Integriert
Stromverbrauch (Monitor): 0,45W (Standby) / 9W (Betrieb)
Betriebstemperatur / Luftfeuchtigkeit: -20°C bis +55°C
Stromversorgung: 32V DC
Abmessungen Unterputzkasten: 106mm (B) x 221mm (H) x 40mm (T)
Abmessungen Frontpanel: 134mm (B) x 253mm (H)
Stromverbrauch: 0,8W (Standby) / 3W (Betrieb)
Schutzklasse: IP44
Gewicht: 0.7 kg
Betriebstemperatur / Luftfeuchtigkeit (Monitor): -10°c bis +40°C
