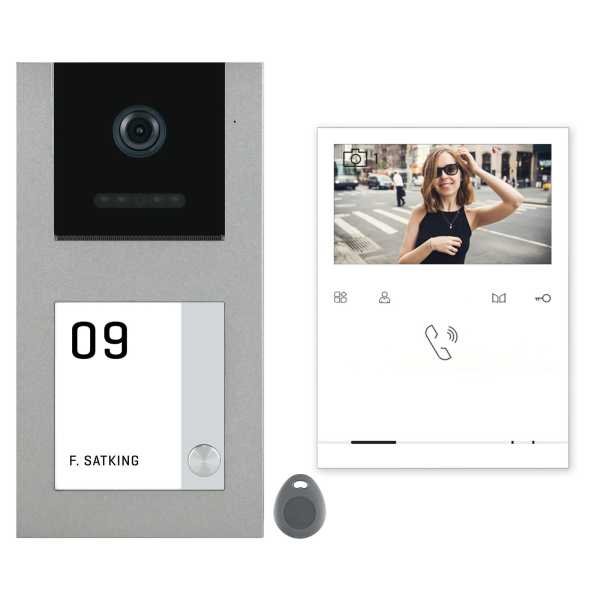

Balter EVO-AP Grey Quick Video Door Intercom 2-Wire BUS RFID IP54 Complete System 1 Participant


Delivery date unknown

  • 0663140856113
See who is at the door: the EVO-AP video door intercom system makes it possible. This... more
See who is at the door: the EVO-AP video door intercom system makes it possible. This high-quality door station records all your visitors with a high-resolution camera. The high viewing angle ensures a maximum overview. Powerful LEDs show you your visitors clearly, even at night.

This door station for a family has a bell-button, a 120° wide-angle camera, and is made of high-quality aluminum. The elegant housing in subtle gray looks great on any wall. And thanks to the textured surface, it also feels just as great. In order to defy wind and weather, EVO-AP is dust and splash-proof according to IP54. Your new EVO-AP video door intercom will continue to serve you for a long time.

The compact monitor EVO-Quick is the ideal addition to its big brother EVO-7M. The particularly narrow form factor and 2-wire BUS technology ensure effortless installation. See your visitors live on the 4.3" display and open the door with a tap of your finger. Choose from 6 ring tones to personalize your experience. Of course, you can also use the intercom function with EVO-Quick and send voice messages to others Replace EVO devices! (You can expand your system to include up to 4 monitors if you wish.)

- 4.3" LCD Display
- Door Station for 1 Family
- 120° Wide-Angle Lens
- High-Resolution Camera
- 2-Wire BUS Technology
- 6 Ring Tones Pre-Installed
- Open the Door with an RFID Chip
- Intercom Function Available
- White Light LEDs for Night Vision
- See and Speak to Visitors Live
- Connection for Surveillance Camera
- Integrated Microphone and Speaker
- Floor Bell & Doorbell can be Connected
- Intercom with Video Function
- Protection Class IP54
- Surface Mounting
- Name Tag

2-Wire Bus Technology
2-wire BUS technology ensures unmatched ease and speed of installation. Two wires are sufficient to transmit video, audio, and power at the same time - this minimizes work and costs even during installation. If EVO-AP replaces an already existing, older door intercom system, its old wiring can normally still be used.

Camera with 120° Wide-Angle Lens
Words are often not enough in everyday life. A picture is worth a thousand words. That's why EVO shows you a live image of your visitors and you know immediately who is at the door. The wide-angle camera installed in the outdoor station has a viewing angle of 120°. You can identify them even if several visitors are at the door at the same time. For comparison: The viewing angle of the human eye is only approx. 60°.

A security Camera can be Connected!
Experience even more control. You can connect a surveillance camera (CVBS) to this door station and seamlessly switch back and forth between the live images from the door station and the surveillance camera. (Only a CVBS camera is suitable for connection.)*

Open The Door with an RFID Chip
With the integrated RFID reader, you can open your door without a key, but with a handy chip card. No more searching for keys in the dark! You can add chip cards at any time and distribute them to family members - at no cost to the locksmith.

Intercom Function
Keeping in touch with loved ones just got easier! The intercom function connects several monitors in a household and allows you to exchange voice messages. This way you keep the whole family up to date and have everyone at your table on time in the evening.

IP54 - Defies Wind and Weather
Dust and splash-proof according to IP54, robust and elegant housing.

Illuminated Name Tag
The name tag is automatically illuminated in the dark. Thanks to an integrated light/dark sensor, EVO-AP automatically detects the onset of darkness. In this case, it automatically activates the lighting of the nameplate and the bell-button.

Balter EVO Main Power Distributor
The BUS-C4001 is a power supply module for Balter EVO 2-wire BUS systems and supplies door stations, video stations, and other modules with power. At the same time, it serves as a voltage distributor.

Technical Info (Balter EVO-AP door station):
- Bell Buttons: 1
- Installation: Surface-Mounted
- Technology: 2-Wire BUS
- Camera Module: 120° Wide-Angle Camera
- Microphone and Speaker: Integrated
- Illuminated Nameplate: Yes
- Material: Aluminum
- Protection Class: IP54
- Weight: 382g
- Dimensions: 90mm (W) x 175mm (H) x 30mm (D)

Technical Info (Balter EVO-Quick Compact Monitor):
- Display: 4.3 LCD
- Input Voltage: 30 ± 2V
- Display Resolution: 480 x 272p
- Operating Temperature: -10 °C to 40 °C
- Dimensions: 111 x 155.5 x 17mm (without wall bracket)

1x Balter EVO-AP Door Station 1 Participant Grey, 2-Wire BUS Technology, 120° Wide-Angle Camera, EVO-AP-1FAM
1x Balter EVO-Quick 4.3" Compact Monitor, White
1x Balter EVO Main Power Distributor
1x RFID Master Chip (Programming Chip for Delete and Add)
4x RFID Chip (Key)
2x Instruction Manual
1x Wall Bracket (for Monitor)
1x Allen Key, Clamping Block, Screw, and Dowel Set

* CVBS (Color Video Blanking Signal)
Surveillance cameras with the older analog technology (CVBS) have a maximum resolution of 960H. The video signal is transmitted via coaxial or BNC cables. The advantage over an analog HD camera is the built-in CCD sensors.
Farbe: Grau
Tag/Nacht Umschaltung: Automatisch
Auflösung: 480x272
Abmessungen Frontpanel: 90mm (B) x 175mm (H)
Kameramodul: 120° Weitwinkel-Kamera
Blickwinkel: 120 Grad Weitwinkelobjektiv
Bildschirmgröße: 4.3 Zoll Farb-LCD
Abmessungen (Monitor): 111mm (B) x 155mm (H) x 17mm (T)
Funktionen (Monitor): 6 Klingeltöne vorinstalliert, Besucher live sehen und sprechen, Intercom, Unterstützt Etagenklingel, Unterstützt Türgong
Gewicht (Monitor): 0.2 kg
Material: Aluminium
Interkom-Funktion: Ja
Verkabelung (Monitor): 2-Draht BUS
Befestigungsart (Monitor): Aufputz
Material (Monitor): Plexiglas
Gewicht: 0.4 kg
Schutzklasse: IP54
Mikrofon und Lautsprecher: Integriert
Beleuchtetes Namensschild: Ja
RFID-Funktion: Ja
Technologie: 2-Draht BUS
Montageart: Aufputz
Teilnehmer/Wohneinheit: 1 Familienhaus
Farbe (Monitor): Weiss
