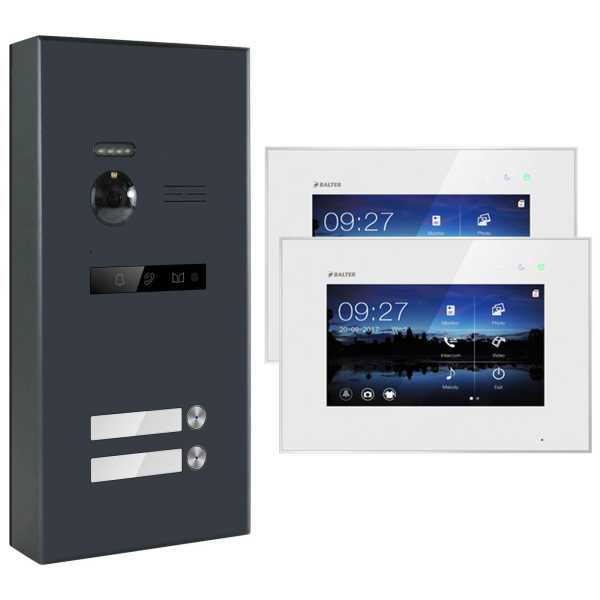

BALTER EVO Surface-Mounted Stainless Steel Anthracite 2-Wire BUS 7" Video Door Station Set for 2 Participants


Delivery date unknown

  • 0663140856502
Get the Balter EVO stainless steel door station set (surface-mounted) now and expand your door... more
Get the Balter EVO stainless steel door station set (surface-mounted) now and expand your door station with 2 touch-enabled screens and a main power distributor.

- Door Station for 2 Families
- 150° Wide Angle Lens
- High-Resolution Camera
- Illuminated Nameplate
- 7" Touchscreen Display
- 2-Wire BUS Technology
- Surface Mounting
- Intercom, Door Opener
- Plexiglass Front Panel
- Video Communication
- MicroSD Slot up to 32GB
- Integrated Voltage Distributor

This high-quality door station records all your visitors with a high-resolution camera. The high viewing angle ensures a maximum overview. Powerful LEDs show you your visitors clearly, even at night. It is made of high-quality stainless steel and is a surface-mounted door station. The wide-angle camera installed in the outdoor station covers almost the entire horizontal. So you can see both visitors who are next to and under the camera. Even if there are several people in front of the door, you can still see them all.

You can see the live image of your visitors on the ultra-slim 7 monitor and you can open the door with a tap of your finger. Enjoy the added convenience by connecting several monitors together: You can use all the functions of your EVO video door intercom and, for example, open the door from your favorite room. You can integrate up to 4 monitors per family into your system. With multiple monitors, the convenient intercom function is also available, with which you can easily communicate between different monitors.

The BUS-C4001 is a power supply module for Balter EVO 2-wire BUS systems and supplies door stations, video stations, and other modules with power. At the same time, it serves as a voltage distributor.

2-Wire Bus Technology
The built-in 2-wire BUS technology ensures quick and easy installation. Two wires are enough to transmit video & audio data as well as power at the same time. In this way, you minimize the costs and workload when installing the door station. If the Balter EVO-AP door station replaces an already existing, older door intercom, you can normally continue to use its old wiring.

Stainless Steel Door Station with 2 Bell Buttons
This high-quality door station is made of brushed stainless steel and impresses with its timeless and elegant design. Even after a long period of use, the door station still looks good. The powerful 150° wide-angle camera covers a particularly wide field of view in order to reliably depict people who are not directly in front of the camera.

High-Quality Stainless Steel Design
Thanks to the anti-fingerprint coating, you will not see any fingerprints on the robust and weatherproof stainless steel surface, even after long use of the video door intercom.

LEDs with Automatic Day/Night Switching
A day/night sensor built into the front-door station automatically detects the time of day or brightness, which means that the lighting of the bell button and the nameplate are switched on when it gets dark. Thanks to the powerful LEDs, you can clearly see visitors even at night.

Intercom Function
With up to 2 additional monitors, you can enjoy maximum convenience! Install an additional monitor in your favorite room to easily open the door from there and save yourself the trip into the hallway! The convenient intercom function is also available to you, with which you can easily communicate between multiple monitors.

Compatible with MicroSD Cards
So that you can save even more videos and photos of visitors, the internal memory can be expanded with a standard MicroSD card up to 32GB. So you have enough space for hundreds of videos and up to 1000 photos. If necessary, you can export the data to your computer and save it permanently.

Technical Info (Door Station)
- Bell Buttons: 2
- Color: Anthracite
- Installation: Surface-Mounted
- Material: Stainless Steel
- Hands-Free Function: Yes
- Illuminated Nameplate: Yes
- Microphone and Loudspeaker: Integrated
- Technology: 2-Wire BUS, No Polarity
- Day/Night Switching: Automatic/Always-On/Off
- Camera Module: up to 150° Wide Angle Camera, High Resolution
- Dimensions: 140 mm (W) x 270 mm (H) x 50 mm (D)
- Power Consumption: 0.8W (Standby)/3W (Operation)
- Operating Temperature: -20° C to + 55° C
- Power Supply: 32V DC
- Weight: 1,985 g

Technical Info (Video Station)
- Color: White
- Installation: Surface-Mounted
- Material: Plexiglass
- On-Screen Menu: Yes
- Intercom Function: yes
- Screen Type: Touch Screen
- Screen Size: 7 Inch Color TFT
- Resolution: 1024 (H) x 600 (V) Pixels
- Touchscreen Technology: Capacitive
- Technology: 2-Wire BUS, No Polarity
- Functions: See Photos of Missed Visitors, Listen to Visitor Messages, Record Videos, Support a Floor Bell, Intercom
- Dimensions: 222mm (W) x 154mm (H) x 15mm (D)
- Power Consumption: 0.45W (Standby)/9W (Operation)
- Power Supply: 22 - 32V DC
- MicroSD Cards: up to 32 GB
- Weight: 645g

1x Balter EVO Surface-Mounted Stainless Steel Door Station 2 Participants, Anthracite
2x Balter EVO 7 Inch Video Station, White
1x Balter EVO Main Power Distributor
2x Wall Bracket (for Monitor)
3x User Manual
1x Clamping Block, Suction Holder, Screw and Dowel Set
Farbe: Anthrazit
Material (Monitor): Plexiglas
Gewicht (Monitor): 0.5 kg
Auflösung: 1024x600
microSD Karten: Bis zu 32 GB
Interkom-Funktion: Ja
Touchscreen Technologie: Kapazitiv
Bildschirmgröße: 7 Zoll Farb-TFT
Bildschirmart: Touchscreen
Abmessungen (Monitor): 222mm (B) x 154mm (H) x 15mm (T)
Funktionen (Monitor): Fotos verpasster Besucher sehen, Besuchernachrichten anhören, Videos aufnehmen, Unterstützt eine Etagenklingel, Interkom
Verkabelung (Monitor): 2-Draht BUS
Befestigungsart (Monitor): Aufputz
Stromversorgung (Monitor): 22 - 32V DC
Stromverbrauch (Monitor): 0,45W (Standby) / 9W (Betrieb)
Material: Edelstahl
Gewicht: 2.0 kg
Stromverbrauch: 0,8W (Standby) / 3W (Betrieb)
Betriebstemperatur / Luftfeuchtigkeit: -20°C bis +55°C
Mikrofon und Lautsprecher: Integriert
Freisprechfunktion: Ja
Beleuchtetes Namensschild: Ja
RFID-Funktion: Nein
Tag/Nacht Umschaltung: Automatisch/Immer an/Aus
Kameramodul: 150° Weitwinkel-Kamera, Hochauflösend
Technologie: 2-Draht BUS, keine Polarität
Montageart: Aufputz
Blickwinkel: 150 Grad Weitwinkelobjektiv
Teilnehmer/Wohneinheit: 2 Familienhaus
Abmessungen Frontpanel: 140mm (B) x 270mm (H) x 50mm (T)
