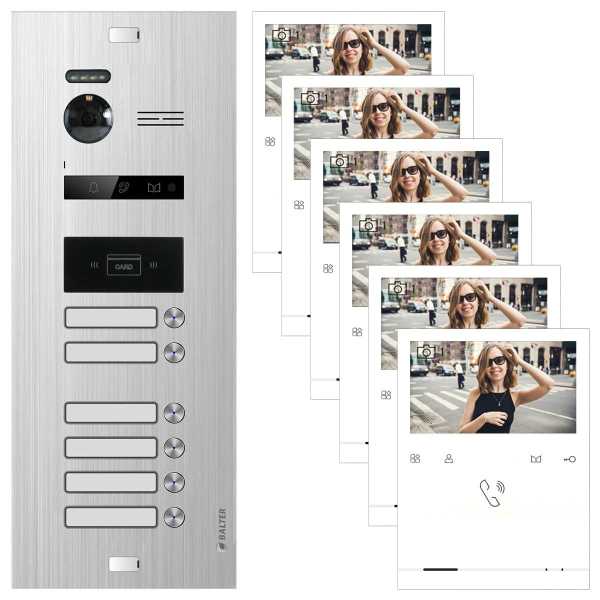

Balter EVO Silver Video Door Intercom Quick Monitor 2-Wire BUS Complete System for 6 Participants


Delivery date unknown

  • 0039067385577
See immediately who is at the door: The EVO video door intercom shows you a live video of every... more
See immediately who is at the door: The EVO video door intercom shows you a live video of every visitor who rings the doorbell. You can then talk to your guests via the integrated intercom system and open the door with a tap of your finger on the touchscreen. In addition, EVO offers many other functions to make your everyday life easier.

- Door Station for 6 Families
- "Silver" Color Variant
- Protection Class IP44
- Hands-Free Function
- 150° Wide-Angle Lens
- High-Resolution Camera
- Brushed. Aluminum Plate
- Illuminated Name Tag
- 4.3" LCD Display
- 6 Ring Tones Pre-Installed
- Intercom function available
- See and speak to visitors live
- Floor bell & doorbell can be connected
- Integrated microphone and loudspeaker
- 2-wire BUS technology
- Flush mounting (door station)
- Surface mounting (compact monitor)

This complete package includes everything you need to equip a family home with the modern and powerful EVO video door intercom:

1x Door Station Made of Aluminum with 6 Bell Buttons & RFID
The high-quality door station made of brushed aluminum impresses with its timelessly elegant design and looks good even after long use. A powerful 150 ° wide-angle camera covers a particularly wide field of view in order to reliably depict people who are not directly in front of the camera. Groups are also displayed optimally in this way. Thanks to an integrated light / dark sensor, the front-door station automatically detects the onset of darkness and switches on the lighting of your nameplate and the bell button. Powerful night vision LEDs ensure that you can clearly see and identify visitors even at night. Concealed screws ensure even greater operational reliability. During installation, the fastening screws are closed with a flap that can only be opened with a special tool (and is of course included). This effectively prevents burglars from unscrewing the system. The door station corresponds to protection class IP44 and resists rain, dust, and snow.

6x BALTER EVO-Quick 4.3" Compact Monitor
The compact monitor EVO-Quick is the ideal addition to its big brother EVO-7M. The particularly narrow form factor and 2-wire BUS technology ensure effortless installation. See your visitors live on the 4.3 "display and open the door with a tap of your finger. Choose from 6 ring tones to personalize your experience. Of course, you can also use the intercom function with EVO-Quick and voice messages with others Exchange EVO devices!

1x Power Supply Module
The EVO-C4001 power supply module reliably supplies your video door intercom system with energy and ensures smooth operation. Mounting on a top-hat rail ensures quick and time-saving installation. Thanks to multi-protection, the module is protected against overvoltages and overloads as well as against short circuits. The reverse polarity protected structure ensures maximum safety.

A picture is worth a thousand words. That's why EVO shows you a live picture of your visitors and you know immediately who is at the door. The wide-angle camera installed in the outdoor station has a viewing angle of 150 °. This means that the camera covers almost the entire horizontal plane, and you can see visitors standing next to as well as under the camera. You can identify them even if there are multiple visitors at the door at the same time.

Night Vision LEDs with Automatic Day/Night Switching
The EVO door station is equipped with several night vision LEDs so that you can clearly see your visit even in the dark. You will see a clearly recognizable picture of your guests at any time of the day or night. EVO automatically detects the current lighting conditions via an integrated light / dark sensor and automatically switches the LEDs on if necessary.

2-Wire Bus Technology
The built-in 2-wire BUS technology ensures quick and easy installation. Two wires are enough to transmit video & audio data as well as power at the same time. In this way, you minimize the costs and workload when installing the door station. If the Balter EVO door station replaces an already existing, older door intercom, you can usually continue to use its old wiring.

Surface made of Aluminum, Elegant Design
EVO's door station is made of high-quality aluminum. This robust and light material ensures that you and your visitors can enjoy EVO's elegant design for a long time to come. Thanks to protection class IP44, EVO defies rain, dust, and snow. The timeless and straightforward design harmonizes both with older houses and with new buildings.

Day/Night Switchover & Illuminated Name Tag
Thanks to an integrated light / dark sensor, EVO automatically detects the onset of darkness. In this case, it automatically activates the lighting of the nameplate and the bell button. In addition, when a visitor rings the doorbell in the dark, night vision LEDs are automatically activated so that you can see exactly who is at your door even at night. During the day, the lighting is switched off to save electricity and protect the environment.

Intercom Function
Keeping in touch with loved ones just got easier! The intercom function connects several monitors in a household and allows you to exchange voice messages. This way you keep the whole family up to date and have everyone at your table on time in the evening.

Technical Info (Door Station)
- Bell buttons: 6
- Viewing angle: 150 degree wide angle lens
- Door opener connection to the door station 12V DC (max. 160mA via the door station or potential-free contact)
- Installation: flush mounting
- Technology: 2-wire BUS, no polarity
- Camera module: 150 ° wide-angle camera, high resolution
- Day / night switching: automatic / always on / off
- Illuminated nameplate: Yes
- Hands-free function: yes
- Microphone and loudspeaker: Integrated
- Color: Silver
- Material: aluminum
- Protection class: IP44
- Operating temperature: -20 ° C to + 55 ° C
- Power consumption: 0.8W (standby) / 3W (operation)
- Power supply: 32V DC
- Dimensions flush box: 106mm (W) x 332mm (H) x 41mm (D)
- Dimensions front panel: 134mm (W) x 353mm (H)
- Weight: 1070g

Technical Info (EVO-QUICK)
- Display: 4.3 LCD
- Input voltage: 30 ± 2V
- Display resolution: 480 x 272p
- Operating temperature: -10 ° C to 40 ° C
- Dimensions: 111 x 155.5 x 17mm (without wall bracket)

Technical Info (EVO Main Power Distributor)
- DIN rail mounting
- Input power: 100V AC - 240V AC
- Output power: 30V DC (1.2A)
- Dimensions: 140mm (W) x 97.5mm (H) x 58.5mm (D)

6x Balter EVO-Quick 4.3" Compact Monitor, White (EVOQUM)
1x Balter EVO Door Station 6 Participants, silver (EVO-6FAM)
1x BALTER EVO Main Power Distributor (Power Supply for up to 8 Monitors + 1 Door Station, EVO-C4001)
7x RFID Chip (1x Master Chip & 6x Key)
1x Allen Key, Screw and Dowel Set
6x Wall Bracket (for Video Station)
1x Flush-Mounted Box (for Door Station)
1x Instruction Manual
