BALTER-EVO-SILVER-TUERSTATION-8-TEILNEHMER-ERWEITERUNG

BALTER EVO Silver Door Station for 8 Participants Extension

-

In Stock

  • BAEVO8ERW
  • 4260132686329
The door station made of aluminum with 8 bell buttons for 8 participants extension This product... more

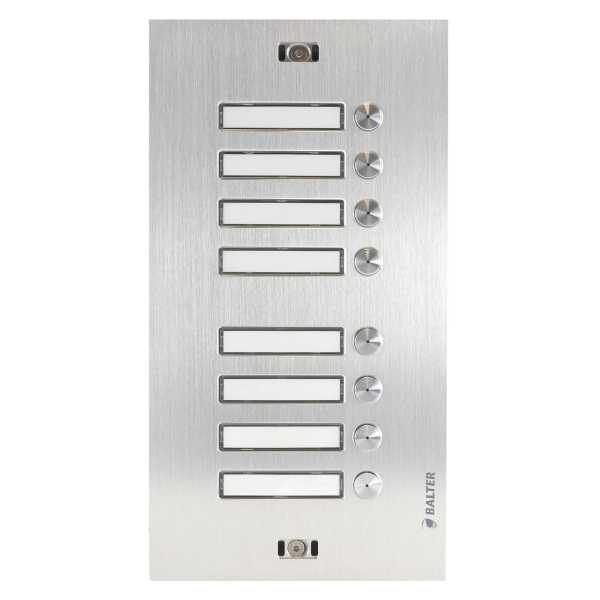

The door station made of aluminum with 8 bell buttons for 8 participants extension

This product was developed for the purpose of extension for Balter EVO Silver Door Stations.

This high-quality door station made of brushed aluminum inspires with a timelessly elegant design and looks good even after long use. Thanks to an integrated light/dark sensor, the outdoor station automatically detects darkness and switches on the lighting of your name badge and the bell button.

Concealed screws ensure even greater operational reliability. During installation, the fastening screws are closed with a flap that can only be opened with a special tool (and is of course included in the delivery). This effectively prevents burglars from unscrewing the system.

The door station corresponds to protection class IP44 and resists rain, dust and snow.

Features
- 8 Bells (8 participants extension)
- Brush. Aluminum Plate
- Color Variant "Silver"
- Illuminated Name Tag
- Flush Mounting
- Protection Class IP44
- 2-Wire BUS Technology

2-Wire Bus Technology
2-wire BUS technology ensures an unmatched easy and quick installation. Two wires are enough to transmit video, audio and power at the same time - this minimizes the work and cost involved in installation. If EVO replaces an existing, older door intercom, you can normally even continue to use its old wiring.

Aluminum Surface, Elegant Design
EVO's door station is made of high quality aluminum. This robust and light material ensures that you and your visitors can enjoy EVO's elegant design for a long time. Thanks to protection class IP44, EVO defies rain, dust and snow. The timeless and straightforward design harmonizes with older houses as well as with new buildings.

Illuminated Name Badges & Bell Buttons
Thanks to an integrated light/dark sensor, EVO automatically recognizes the onset of darkness. In this case, it automatically activates the illumination of the name badges and bell buttons.

Technical Info:
- Bell Buttons 8 (8 Participants Extension)
- Door Release Connection at The Door Station 12V DC (max. 160mA via the door station or potential-free contact)
- Installation Flush Mounting
- 2-wire BUS Technology, No Polarity
- Illuminated Name Tag: Yes
- Color: Silver
- Material: Aluminum
- Protection Class: IP44
- Operating Temperature: -20°C to + 55°C
- Power Consumption: 0.8W (standby)/3W (operation)
- Power Supply: 32V DC
- Dimensions Front Panel: 134mm(W) x252mm(H)
- Dimensions Flush Box: 106mm(W) x 221mm(H) x 40mm(D)
- Weight: 715g

Delivery:
1x BALTER EVO Silver Door Station for 8 Participants Extension
1x Flush-Mounted Box
1x Allen Key
1x Screws + Dowels

Note: If you would like to buy a set with "Balter EVO Silver Door Station Extension", please get in contact with us.
Farbe: Silber
Material: Aluminium
Teilnehmer/Wohneinheit: 8 Familienhaus
Montageart: Unterputz
Technologie: 2-Draht BUS, keine Polarität
Beleuchtetes Namensschild: Ja
Betriebstemperatur / Luftfeuchtigkeit: -20°C bis +55°C
Abmessungen Unterputzkasten: 106mm (B) x 221mm (H) x 40mm (T)
Schutzklasse: IP44
Abmessungen Frontpanel: 134mm (B) x 252mm (H)
