V325_BMS-9932_DC

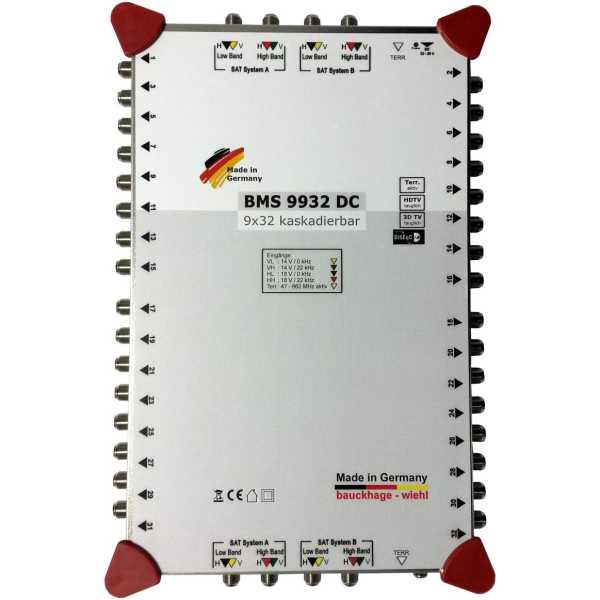

BMS 9932 DC multi switch 9/32 Cascadable

-

Delivery date unknown

  • MULBMS015
  • 4260110722599
To receive 8 polarization levels (hor. + Vert. Low-band + high-band from 2 satellites) and... more
To receive 8 polarization levels (hor. + Vert. Low-band + high-band from 2 satellites) and terrestrial signals for up to 32 satellite receivers. This BMS multi switch can be extended to other participants by means of BMS cascades.

Technical Info
Terrestrial input: 1 x 40 - 862 MHz
Sat input: 8 x 950 - 2200 MHz
Output: 32 x 47 - 2200 MHz
Switching voltage: 14/18 V, 0/22 kHz, DiSEqC 1.0
Branch attenuation Sat: 4 dB +/- 2.5 dB
Terrestrial branch attenuation: -31 dB +/- 3 dB (passive) -2 dB +/- 2 dB (active)
Quad LNB suitable: No.
Decoupling H / V:> 30 dB
Decoupling satellite / terrestrial:> 30 dB
Output level: approx. 100 dBµV (Sat), 88 dBµV (terr.)
Current consumption: <43 mA
Remote feed current: 280 mA
Dimensions: 302 x 196 x 63 mm
Power supply: 13 - 20 V, via optional power supply unit

Delivery
BMS 9932 DC Multiswitch 9/32 Cascadable
