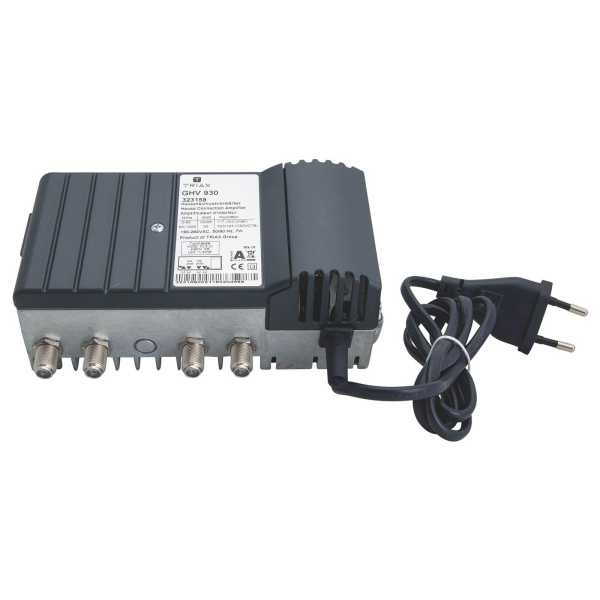

Triax GHV 930 House Connection Amplifier with Returnchannel 30dB (Terrestrial/Cable)

GHV 930 house connection amplifier with return path, ampl. 30dB, 47 ... 1006MHz

The GHV 900 series are multimedia-capable house connection amplifiers for small to medium-sized building units. They are used to compensate for the cable and distribution attenuation in the BK house network.

The house connection amplifiers of the GHV 900 series have implemented all-important functional units such as forward amplifiers, diplex filters, return path amplifiers, and the associated actuators and rotary switches completely on the circuit board. You do not need any additional accessories for commissioning or operation.

For multimedia-capable CATV/BK networks with an active (passive) return path.

Features
- future-proof 1 GHz technology
- Rotary switch for setting the attenuation and equalization in 1 dB steps
- All-on-board: no modules or plug-in pads required
- Basic gain of the return path can be reduced by 6 dB without impairing noise and modulation capability
- VHF band I operation can be activated by switching off the return path
particularly economical thanks to the highly efficient, durable, and energy-saving switched-mode power supply
- High-quality F connectors for secure contacting and thus ingress and LTE protection
- Measuring sockets at input and output
- Comprehensive ESD/surge protection

Technical Info
- Return channel: 5 ... 65 MHz
- Type: amplifier - indoor
- CSO output level (42 channels, 852 MHz): 103/105 dBµV
- Output level CTB (42 channels, 862 MHz): 103/105 dBµV
- Output level return IMD 2 / IMD 3 @ 60 dB: 96/117 dBµV
- Frequency range: 47 ... 1006/85 ... 1006 MHz
- Noise Figure - Forward (VHF I "on"): 6.5
- Gain: 30 (@ 1006MHz) dB
- Gain Return (@ 60MHz): 22/28 dB
- Noise figure: 7 dB
- Return path noise figure: 5 dB
- Equalization: 0 ... 15
- Attenuation: 0 ... 15 dB
- Interstage attenuation: 0/3/6/9 dB
- Linearity: ± 1.0 dB
- Impedance/Characteristic impedance: 75?
- AC operating voltage: 190 ... 264 VAC
- Power consumption (typ.): <6 W
- IP protection class: IP 20
- Insulation class: II
- Operating temperature: -25 ... 55 ° C
- Dimensions (WxDxH) 170 x 100 x 65mm
- Weight: 806 g

Delivery
1x Triax GHV 930 Amplifier 30dB
1x User Manual
