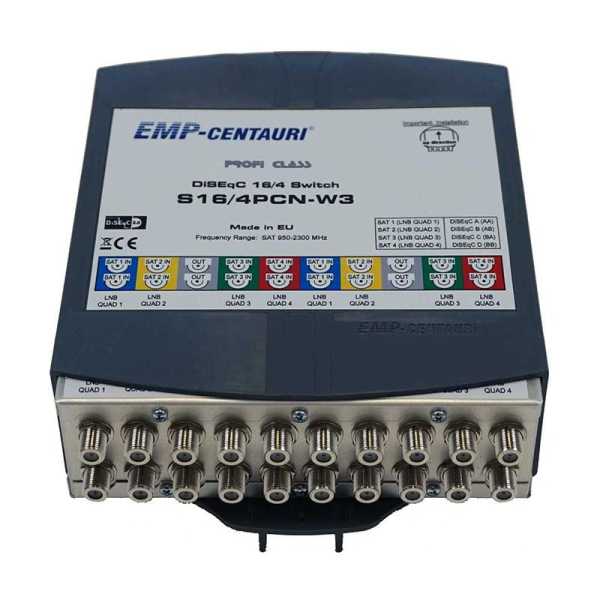

16in/4out fourfold DiSEqC 2.0 switch for 4 satellite positions and 2 users (or 2 receivers with... more
16in/4out fourfold DiSEqC 2.0 switch for 4 satellite positions and 2 users (or 2 receivers with double tuners). It is designed for switching between 3 or 4 LNBs, which are addressed in the receiver with the setting DiSEqC 1.0 A/B/C/D.
Technical Info:
- Input/Output: 16/4
- Control: DiSEqC 1.0 (2.0)
- Frequency Range (Sat. inputs): 950-2300 MHz
- Frequency Range (Output): 5-2300 MHz
- Control: DiSEqC 1.0 (2.0) commands "Position" & "Option"
- Insertion Loss: 4 dB max
- Sat. Inputs Isolation: 25 dB min
- Power Consumption (From each receiver): 35 mA (18V) + LNB
- DC Current Pass (From each receiver): 400 mA max
- Dimensions (WxDxH): 17,2 x20,0 x 6,9 cm
- Temperature Range: -30 ~ +70 °C
Delivery:
1x EMP-Centauri DiSEqC Switch S16/4PCN-W3
1x Installation/Operating Instructions
2x Cable Ties
Technical Info:
- Input/Output: 16/4
- Control: DiSEqC 1.0 (2.0)
- Frequency Range (Sat. inputs): 950-2300 MHz
- Frequency Range (Output): 5-2300 MHz
- Control: DiSEqC 1.0 (2.0) commands "Position" & "Option"
- Insertion Loss: 4 dB max
- Sat. Inputs Isolation: 25 dB min
- Power Consumption (From each receiver): 35 mA (18V) + LNB
- DC Current Pass (From each receiver): 400 mA max
- Dimensions (WxDxH): 17,2 x20,0 x 6,9 cm
- Temperature Range: -30 ~ +70 °C
Delivery:
1x EMP-Centauri DiSEqC Switch S16/4PCN-W3
1x Installation/Operating Instructions
2x Cable Ties
