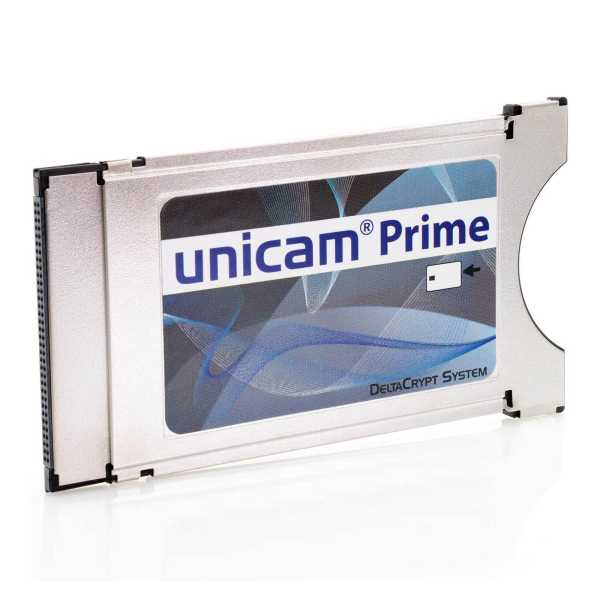

UNICAM Prime PCMCIA CAM is the DVB-CI compatible CI-CAM that provides the conditional access... more
UNICAM Prime PCMCIA CAM is the DVB-CI compatible CI-CAM that provides the conditional access function mounted on the PCMCIA module attached to the digital broadcast receiver (STB) or integrated digital television (iDTV). This CI-CAM decrypts the encrypted MPEG2-TS from STB or iDTV and transmits clear or re-encrypted MPEG2-TS to iDTV (STB).
Features:
- Premium Quality
- Universal Use
- User Friendly
- Doesn`t Matter Where and How
- Plug and Play
Compatible with almost all TV sets and set-top boxes, can be used for receiving satellite channels as well as cable and terrestrial in Germany and worldwide. The Ultra HD module is also suitable for 4K 8K, easy to use. Whether at home or with friends, a CI interface CI card adapter is sufficient, plug, and play format.
Properties:
- DVB CI (EN502221) -compliant PCMCIA CICAM
- CAS Embedded officially certified product
- Safe ultra-fast start
- Software encrypted and signed using a current security model (RSA 2048, AES128) using a hardware-safe implementation
- CAS security keys embedded in chipset-protected OTP (also not accessible to the main CPU)
- CA chipset pairing (based on Advanced Secure Chipset) approved by our CAS partners.
Technical Info:
- 4 MB serial flash, 64 MB embedded DDR SDRAM
- Data channel with two channels and 2048 bytes for the high-speed host interface for PCMCIA
- MPEG-2 transport stream processing function
Decryption:
Can decrypt many services at the same time by processing multiple CA_PMT. All commands defined by EN50221 (ONLY ADD, REMOVE, DELTE, FIRST, MORE, LAST) can be used.
- Supports the general DVB scrambling algorithm DVB-CSA2 / DVB-CSA3
- Supports the IPTV standard scrambling algorithm (IDSA), ATIS 0800006
- Support MPEG-2/MPEG-4/SD/HD/UHD/3D
Delivery:
1x Unicam Prime CI Module with DeltaCrypt Encryption 3.0
(The module is delivered with DeltaCrypt encryption 3.0, latest hardware revision. A programmer must be purchased externally if required.)
