Lokmann CAT 7A network cable is used for building high-speed Gigabit Ethernet networks. It is... more
Lokmann CAT 7A network cable is used for building high-speed Gigabit Ethernet networks. It is also backward compatible with CAT7, CAT6a, CAT6, CAT5e, and CAT5 categories. For the transmission of analog and digital signals in primary, secondary, and tertiary cabling in the frequency range up to 1000MHz. Tested for applications according to Euro fire class Cca.
Technical Info
- Cable Category: CAT 7A
- Cable Type: round cable
- Capacitance Unbalance: max. 1500 pF/km
- DC Resistance: max. 68 O/km
- Resistance Unbalance: max. 2%
- Insulation Resistance: 2 G O x km min
- Operating Capacity: nom. 42 pF/m
- Wave Impedance: at 100 MHZ 100 ± 5 O
- Coupling Resistance: at 1/10/30 MHz 5/5/10 mO/m (Grade1)
- Coupling Loss: min. 85 dB (Type 1)
- Propagation Speed: approx. 79%
- Propagation Delay: nom. 420ns/100m
- Skew at 100MHz: nom. 5ns/100m
- Test Voltage: 1000 V
- Working Voltage: Max 125V
Construction
- Inner conductor: 4 x 2 x 23AWG
- Insulation: PE
- Shielding 1: aluminum foil, individually shielded pairs
- Shielding 2: CU braiding, galvanized
- Outer Sheath: 7.50mm FRNC / LSZH +/- 02mm - Yellow
Norms
- EN50288-4-1
- EN50173
- EN50174-2
- ISO/IEC 11801 2nd edition
- IEC 61156-5
Standards
- European standard: EN 50173-1, EN 50288-9-1
- International standard: ISO/IEC 11801 2nd ed., IEC 61156-5
Behavior in case of fire
- Flame retardancy: IEC 60332-1-2
- Halogen free: IEC 60754-1/2
- Smoke density: IEC 61034-1/2
- Class: Cca-s1a, d1, a1
Chemical Properties
- RoHS 2011/65/EU; IEC 60811-2-1 (IRM 902, 4 hours at 70 °C)
Delivery

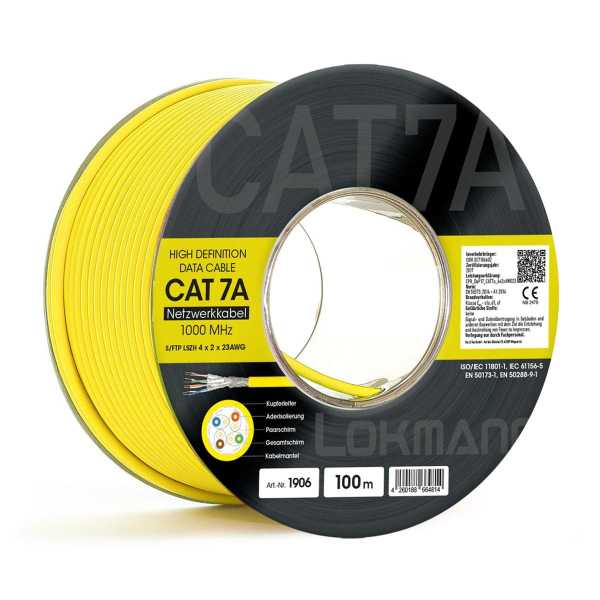

1x Lokmann Patch Network Cable CAT 7A (1000 MHz, S/FTP, LSZH, AWG 23, yellow)*
* The scope of delivery depends on the selected variant.
