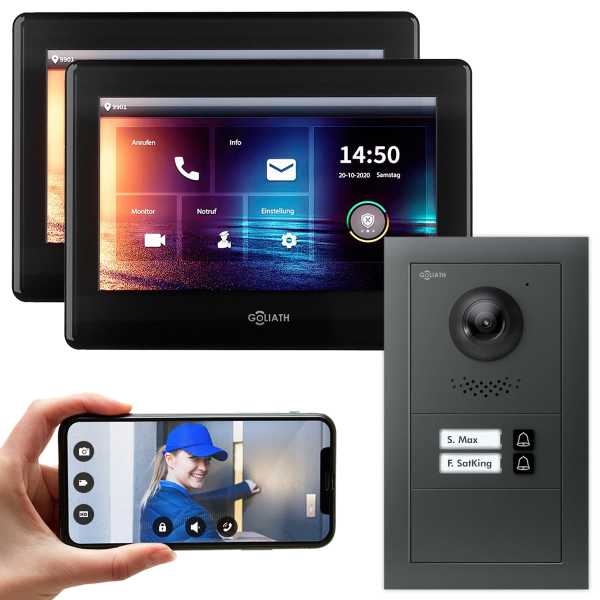

GOLIATH IP modular Video Door Intercom Anthracite Flush-Mounted Set for 2 Participants

See immediately who is at the door: the GOLIATH door intercom system shows you every visitor who rings. With the help of door phone monitor, you can see live every visitor standing in front of the door, so you always know who is in front of the door.

This assembled modular system for a 2-family house from GOLIATH contains a camera module with a 2 MP full HD camera with a 180° ultra wide-angle lens and an illuminated doorbell module. Due to the individual adaptability with boxes, frames, and modules, half or whole modules can be changed easily and conveniently. For example, a blank module can be replaced by a feedback module with status LEDs or an RFID module, which allows you to easily open the door with a chip/card. You can also use other modules with a door opener function, such as the fingerprint or keypad module, and decide how you want the door to be opened. The installation of the GOLIATH door station is relatively easy: Thanks to the connection via LAN cable and PoE adapter, the system is supplied with power and thus has less disruptive cables and a fast and secure connection to the door station. In addition, you will receive IP monitors, which are installed inside the house and make full use of every function of the door intercom. This outdoor station offers you a complete solution and is available in different colors and mounting methods.*

*This set from the Goliath IP series is perfect for a 2-family house, which can be expanded with additional indoor stations and surveillance cameras from Goliath.

Features
- Door Station for 2 Family House
- Connection via LAN Cable
- Type of Installation: Flush-Mounted
- 7 Inch Touchscreen Monitor*
- 10 Inch Touchscreen Monitor*
- HD Resolution (1024 x 600)
- Image, Audio, and Video Recording (even when you are away)
- 1/2 8" 2MP CMOS Camera
- Full HD Resolution Door Station (Camera)
- Camera with 180° Wide Angle (Diagonal)
- IR Night Vision
- Protection against Tampering
- Protection Class IP65/IK07
- Intelligent Feedback Function
- Mobile App for iOS & Android
- Blank Module as a Placeholder (Half Module)*
- Feedback Module (Half Module)*
- Fingerprint Module (Entire Module)*
- KeyPad Module (Entire Module)*
- RFID Module (Half Module)*
- Intercom Function
- Connection of IP Cameras
- 3-Year Warranty

* Varies depending on the variant

Camera with 180° Ultra Wide Angle Lens
With the help of the 2-megapixel camera and a 180° wide-angle lens (diagonal), you won't miss anything in front of the door, so you can see who rang the bell. This means that the camera covers the entire horizontal and vertical plane, and you can see visitors who are both next to and below the camera. (Viewing angle: diagonal 180° / horizontal 160° / vertical 82°). When it gets dark, the camera automatically switches to the infrared lens, so you can see objects or people even in the dark. So you can always see clearly what's going on in the dark.

IP Function
Power, audio, and video are easier than ever with LAN cable connection and support for PoE adapters. This means that power cables can be saved during installation and can also be installed in places that are difficult to access or in areas where many cables are in the way. The Goliath door intercom can even be controlled from a smartphone or tablet. This makes it possible to communicate with your visitors from anywhere, see them, and open the door for them. The indoor station is mounted directly on the desired wall with a bracket. When installed in apartment buildings, the indoor station can also be connected to an existing external gong or the bell button in the hallway.

Capacitive Full Touchscreen 7 Inch Monitor*
With the 7-inch monitor, you get a full touchscreen display, which is protected from scratches and breakage by 2.5D. The HD resolution ensures a perfect perspective, whether it is for direct image transmission from the camera or for photos and videos that have been taken. With the help of the connected system, the front door can be opened easily via the monitor, thanks to the door opener function. Your visitors are clearly displayed in a list under missed and accepted calls. In this way, you are always informed about what is happening at your door, even when you are away. With an optionally available memory card, even pictures of the visitors are saved. (Expandable up to 64GB via MicroSD slot)

* Varies depending on the variant

Capacitive Full Touchscreen 10 Inch Monitor*
With the 10-inch monitor, you get a full touchscreen display in an elegant design. The HD resolution ensures a perfect perspective, whether it is for direct image transmission from the camera or for photos and videos that have been taken. With the help of the connected system, the front door can be opened easily via the monitor, thanks to the door opener function. The camera image of the door station appears and an automatic snapshot is saved on the 8GB internal memory (which cannot be expanded with a MicroSD card). There is also the option of recording and saving manual video recordings. If you want to be undisturbed, you can activate the DND silent mode, and your indoor station is switched to mute.

* Varies depending on the variant

Intercom Function
With additional monitors (1x master + extension), enjoy maximum comfort! Install an additional monitor in your favorite room to simply open the door from there and save yourself the trip into the hallway! You also have the convenient intercom function at your disposal, with which you can easily communicate between two monitors.

Mobile App for iOS & Android
With the GOLIATH app, it is also possible to integrate your cell phone with the system, which means that functions such as door opening and camera overview can be used on the go. This allows you to take full advantage of the facility without being at home.

Service, Updates, and Benefits
- 3-year warranty on all GOLIATH door intercom sets.
- Free downloadable software updates for continuous system updates and maintenance.
- Professional preparation of the system worth 90 free of charge.
- Professional support from our technical team. If you have any further questions, you can contact us directly by telephone.

Technical Info (Door Intercom)
- Color: Anthracite
- Installation: Flush-Mounted
- 1080p Full HD Resolution
- Protection Class: IK07/IP65
- Operating System: Linux
- Compatibility: ONVIF; CGI
- 1/2.5" 2MP CMOS Low Illumination HD Color Fisheye Camera
- Viewing Angle: Diagonal 180° / Horizontal 160° / Vertical 82°
- Focal Length: 1.9mm
- WDR: 120dB
- Noise Reduction: 3D NO
- Video Compression: H.265
- Video Frame Rate: 25 fps
- Video Bit Rate: 256 Kbps to 4 Mbps
- Resolution: 50Hz: mainstream (720P at 25 fps), sub-stream (1080P at 25 fps) 60Hz: mainstream (720P at 30 fps), sub-stream (1080P at 30 fps)
- Automatic Infrared Control
- Automatic Day/Night Switching
- Audio Compression: G.711u
- Audio Input: 1 Channel
- Audio Output: Built-In Speaker
- 2-Way Communication
- Echo Cancellation/Digital Noise Reduction
- Audio Bit Rate: 16KHz, 16 bits
- Operating Temperature: -30°C to +60°C
- Humidity: 10% to 90%
- Power Consumption: <12W
- Power Supply: PoE Switch
- Product Weight: 400 g
- Dimensions: 100 x 100 x 39 mm

Technical Info (7 Inch Monitor)*
- Colour: Black/White*
- Resolution: 1024×600 Pixels
- Input: Touchscreen
- MicroSD Card Slot: 64GB Max.
- Audio Input: Built-In Microphone
- Audio Output: Built-In Speaker
- Audio Compression: G.711
- Video Compression: H.264
- Linux Operating System
- Alarm Input: 6
- Alarm Output: 1
- RS485: 1
- Installation: Surface
- Ethernet: 2-Wire (BUS) / LAN
- Power Consumption: in Operation <6W
- Operating Temperature: -10°C to +55°C
- Humidity: <90% Humidity
- Network Protocol: -40°C to +60°C
- Power Supply: Power Supply via PoE Switch
- Product Dimension: 189 x 130 x 27 mm
- Product Weight: 740g

* Varies depending on the variant

Technical Info (10 Inch Monitor)*
- Colour: Black/White*
- Resolution: 1024×600 TFT LCD
- Input: Touchscreen
- Audio Input: Built-In Microphone
- Audio Output: Built-In Speaker
- Audio Support: Echo Cancellation
- Audio Compression: G.711a, G.711Mu, G.711u, PCM
- Video Compression: H.264
- Linux Operating System
- Alarm Input: 6
- Alarm Output: 1
- RS485: 1
- Ethernet: IP / Network Cable
- Network Protocol: TCP/IP
- Internal Memory: 8GB
- Case Material: PC. SECTION
- Installation: Surface
- Power Supply: Poe, DC 12V 1A
- Power Consumption: in Operation <7W
- Operating Temperature: -10°C to +55°C
- Humidity: <90% Humidity
- Network Protocol: -40°C to +60°C, less than 90% humidity
- Product Dimension: 260 x 170 x 28 mm
- Product Weight: 800g

* Varies depending on the variant

Delivery
1x GOLIATH Camera Module Full HD, Anthracite
1x GOLIATH 2 Bell Module, Anthracite
1x GOLIATH Double/Triple Flush-Mounted Housing*
1x GOLIATH Double/Triple Frame, Anthracite*
- GOLIATH 7 Inch IP HD Monitor, Black/White*
- GOLIATH 10 Inch IP HD Monitor, Black/White*
- GOLIATH Blank Module, Anthracite*
- GOLIATH Feedback Module, Anthracite*
- GOLIATH Fingerprint Module, Anthracite*
- GOLIATH KeyPad Module, Anthracite*
- GOLIATH RFID Module (incl. 2x RFID Chip), Anthracite*
1x GOLIATH 4-Port PoE Switch RJ45 10/100 Mbps, Black
1x User Manual

* Varies depending on the variant
