Combat rising energy costs and campsite fees and give yourself the flexibility to camp off the... more

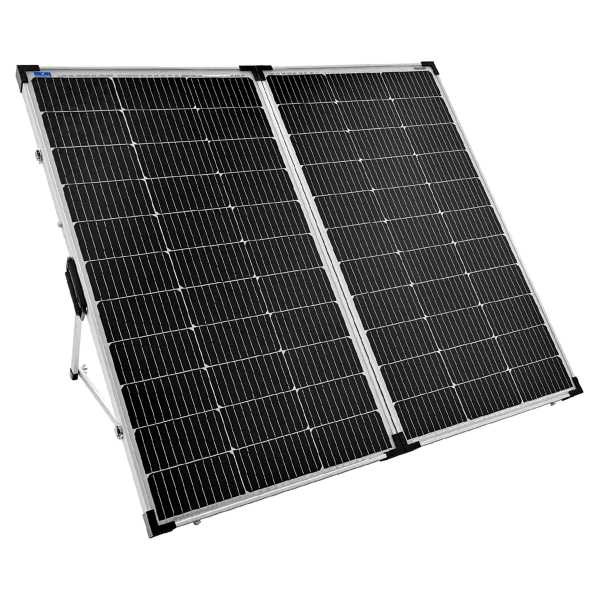

Combat rising energy costs and campsite fees and give yourself the flexibility to camp off the grid for longer with a portable solar panel. The 240-watt rigid panel array consists of two 120-watt monocrystalline panels that fold out into a 240-watt aluminum frame solar panel, with fold-out aluminum legs that can be adjusted to different angles adjust them according to your preferences. The panel comes with a 20A MPPT Bluetooth solar controller that manages input and protects your batteries from overcharging.
Features
- Foldable and Portable Solar Power Solution
- 240W High-Performance Monocrystalline Panels
- Built-in 20A Bluetooth MPPT Solar Controller
- Efficient energy capture in all conditions
- Monitoring via Smartphone App (iOS and Android)
- Versatile battery connection options
What is MPPT?
MPPT (Maximum Power Point Tracking) can increase the charging efficiency and power output of the solar system, especially in low light or cold weather. This improves the efficiency of your panels by up to 30% more than a PWM controller.
Why Monocrystalline Solar Panels
Monocrystalline solar cells consist of individual silicon crystals, which gives them high efficiency. These panels are space-saving and ideal for limited areas as they can harvest more energy from sunlight.
Bluetooth with Solar Function
The attached MPPT controllers use Bluetooth connectivity to allow you to monitor the energy being produced, your battery's state of charge, and the load placed on your battery via an app on your smartphone or tablet. The app is available for any Android or iOS device. This gives you a snapshot view and also a graphical historical view over a 60-day period of what energy is being produced, stored, and used.
Connections
Connecting to your battery is easy, and the panel offers two connection options for the battery. The 4.5-meter-long solar cable has an Anderson click connector at the end that allows it to be connected either to ring terminal connectors that can remain permanently attached to a battery, or to alligator clips. This also means you can use the ring terminals on your main battery and quickly connect the solar system to the battery you choose to charge an additional or the engine battery.
The solar panel folds neatly into a protective cover for storage or transport.
Technical Info (Battery)
- System Voltage: 12/24V Automatic Detection
- Maximum Charging Current: 20A
- Boost Voltage: 14.0 - 14.8V/28.0 - 29.6V (Standard: 14.5/29.0V at 25°C)
- Compensation Voltage: 14.0 - 15.0V/28.0 - 30.0V (Standard: 14.8/29.6V at 25°C)
- Float Voltage: 13.0 - 14.5V/26.0 - 29.0V (Standard: 13.7/27.4V at 25°C)
- Low Voltage Shutdown: 10.8 - 11.8V/21.6 - 23.6V (Default: 11.2/22.4V)
- Low Voltage Restart: 11.4 - 12.8V/22.8 - 25.6V (Default: 12.0/24.0V)
- Temperature Compensation: -4.17mV/K per Cell (Boost, Compensation), -3.33mV/K per cell (float)
- Charging Target Voltage: 10.0 - 32.0V (for lithium, standard: 14.4V)
- Charge Recovery Voltage: 9.2 - 31.8V (for lithium, standard: 14.0V)
- Low Voltage Cutoff: 9.0 - 30.0V (for lithium, standard: 10.6V)
- Low Voltage Reconnection: 9.6 - 31.0V (for lithium, standard: 12.0V)
- Maximum Voltage at the Battery Terminal: 35V
- Battery Type: Gel, AGM, Liquid, Lithium (Default: Gel)
Technical Info (Solar Panel)
- Cell Type: Monocrystalline
- Maximum Voltage on PV at -20°C: 55V*
- Maximum Voltage on PV at 25°C: 50V
- Maximum Input Power: 260/520W
- MPPT Tracking Range: (Battery Voltage + 1.0V) ~ Voc*0.9 **
- Protection Class: IP65
* This value represents the maximum voltage of the solar panel at the lowest operating temperature.
** Voc means the open circuit voltage of the solar panel.
Technical Info (MPPT solar controller)
- Maximum Tracking Efficiency: >99.9%
- Maximum Conversion Efficiency: 98.0%
- Communication: BLE
- Grounding: Common Negatives
- Power Terminals: 10AWG(5mm2)
- Ambient Temperature: -20 ~ +55°C
- Storage Temperature: -25 ~ +80°C
- Ambient Humidity: 0 ~ 100%RH
- Protection Class: IP54
- Maximum Altitude: 4000m
Dimensions & Weight (Solar Panel)
- Folded: 1070 x 590 x 70 mm
- Unfolded: 1183 x 1070 x 35mm
- Weight: 18.9kg
Dimension & Weight (MPPT Solar Controller)
- Dimensions: 164 x 107 x 32 mm
- Weight: 700g
Delivery
1x FALCON Foldable 240W Solar Panel (made of 2x 120W monocrystalline panels) with Adjustable Legs
1x Integrated 20A MPPT Bluetooth Solar Controller (Charge Controller)
1x 4.5 Meter Solar Panel Cable with Anderson Connector
1x Battery Alligator Clip Connectors
1x O-Ring Terminal Cable (Ring Connection)
1x Fuse
1x Carrying Bag
1x User Manual
Features
- Foldable and Portable Solar Power Solution
- 240W High-Performance Monocrystalline Panels
- Built-in 20A Bluetooth MPPT Solar Controller
- Efficient energy capture in all conditions
- Monitoring via Smartphone App (iOS and Android)
- Versatile battery connection options
What is MPPT?
MPPT (Maximum Power Point Tracking) can increase the charging efficiency and power output of the solar system, especially in low light or cold weather. This improves the efficiency of your panels by up to 30% more than a PWM controller.
Why Monocrystalline Solar Panels
Monocrystalline solar cells consist of individual silicon crystals, which gives them high efficiency. These panels are space-saving and ideal for limited areas as they can harvest more energy from sunlight.
Bluetooth with Solar Function
The attached MPPT controllers use Bluetooth connectivity to allow you to monitor the energy being produced, your battery's state of charge, and the load placed on your battery via an app on your smartphone or tablet. The app is available for any Android or iOS device. This gives you a snapshot view and also a graphical historical view over a 60-day period of what energy is being produced, stored, and used.
Connections
Connecting to your battery is easy, and the panel offers two connection options for the battery. The 4.5-meter-long solar cable has an Anderson click connector at the end that allows it to be connected either to ring terminal connectors that can remain permanently attached to a battery, or to alligator clips. This also means you can use the ring terminals on your main battery and quickly connect the solar system to the battery you choose to charge an additional or the engine battery.
The solar panel folds neatly into a protective cover for storage or transport.
Technical Info (Battery)
- System Voltage: 12/24V Automatic Detection
- Maximum Charging Current: 20A
- Boost Voltage: 14.0 - 14.8V/28.0 - 29.6V (Standard: 14.5/29.0V at 25°C)
- Compensation Voltage: 14.0 - 15.0V/28.0 - 30.0V (Standard: 14.8/29.6V at 25°C)
- Float Voltage: 13.0 - 14.5V/26.0 - 29.0V (Standard: 13.7/27.4V at 25°C)
- Low Voltage Shutdown: 10.8 - 11.8V/21.6 - 23.6V (Default: 11.2/22.4V)
- Low Voltage Restart: 11.4 - 12.8V/22.8 - 25.6V (Default: 12.0/24.0V)
- Temperature Compensation: -4.17mV/K per Cell (Boost, Compensation), -3.33mV/K per cell (float)
- Charging Target Voltage: 10.0 - 32.0V (for lithium, standard: 14.4V)
- Charge Recovery Voltage: 9.2 - 31.8V (for lithium, standard: 14.0V)
- Low Voltage Cutoff: 9.0 - 30.0V (for lithium, standard: 10.6V)
- Low Voltage Reconnection: 9.6 - 31.0V (for lithium, standard: 12.0V)
- Maximum Voltage at the Battery Terminal: 35V
- Battery Type: Gel, AGM, Liquid, Lithium (Default: Gel)
Technical Info (Solar Panel)
- Cell Type: Monocrystalline
- Maximum Voltage on PV at -20°C: 55V*
- Maximum Voltage on PV at 25°C: 50V
- Maximum Input Power: 260/520W
- MPPT Tracking Range: (Battery Voltage + 1.0V) ~ Voc*0.9 **
- Protection Class: IP65
* This value represents the maximum voltage of the solar panel at the lowest operating temperature.
** Voc means the open circuit voltage of the solar panel.
Technical Info (MPPT solar controller)
- Maximum Tracking Efficiency: >99.9%
- Maximum Conversion Efficiency: 98.0%
- Communication: BLE
- Grounding: Common Negatives
- Power Terminals: 10AWG(5mm2)
- Ambient Temperature: -20 ~ +55°C
- Storage Temperature: -25 ~ +80°C
- Ambient Humidity: 0 ~ 100%RH
- Protection Class: IP54
- Maximum Altitude: 4000m
Dimensions & Weight (Solar Panel)
- Folded: 1070 x 590 x 70 mm
- Unfolded: 1183 x 1070 x 35mm
- Weight: 18.9kg
Dimension & Weight (MPPT Solar Controller)
- Dimensions: 164 x 107 x 32 mm
- Weight: 700g
Delivery
1x FALCON Foldable 240W Solar Panel (made of 2x 120W monocrystalline panels) with Adjustable Legs
1x Integrated 20A MPPT Bluetooth Solar Controller (Charge Controller)
1x 4.5 Meter Solar Panel Cable with Anderson Connector
1x Battery Alligator Clip Connectors
1x O-Ring Terminal Cable (Ring Connection)
1x Fuse
1x Carrying Bag
1x User Manual
