BALTER EVIDA Graphite RFID Stainless Steel Video Door Station Surface-Mounted 1 Participant 2-Wire BUS


Delivery date unknown

  • BEJ7G1AP
  • 0663140855703
Effective access control and well-thought-out functions for a modern lifestyle: Juno and Evida in... more

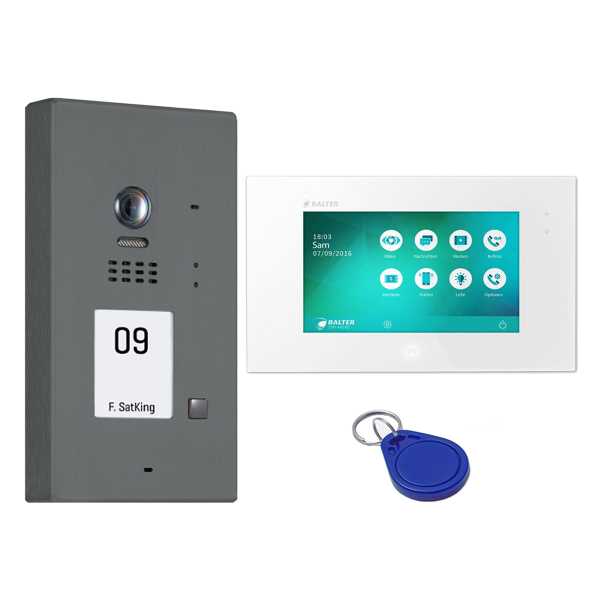

Effective access control and well-thought-out functions for a modern lifestyle: Juno and Evida in a complete package ensure maximum security and maximum comfort! This complete package contains everything you need to equip your house with a modern video door intercom:
-The Juno 7 video station with a large touchscreen on which you can see your visitors and control your video door intercom.
-The Evida outdoor station made of noble metal with anti-fingerprint coating, 170 ° wide-angle camera, and RFID function
-The BUS-C6001 power distributor that ensures the smooth functioning of your video door intercom.

Evida Door Station
The Evida door station makes live videos of your visitors with a powerful 170 ° wide-angle camera and shows them on the video station "Juno". The built-in white light LEDs automatically switch on at night and present visitors clearly even in the dark. If you are away, visitors can be greeted with a message and simply leave a message. The optional GSM module makes you even more independent: Use your landline or mobile phone to speak to visitors and open the door - from the couch, at work, and on vacation. Particularly useful when you are expecting a package or want to let in household help. On request, Evida can even make your keys redundant: you can simply open your door with a small RFID chip card. This option is particularly convenient for households with small children and the elderly, since lost chip cards can simply be blocked - if an ordinary key is lost, the entire locking system often has to be replaced, which is associated with immense costs. Installation is child's play: thanks to the 2-wire BUS wiring, only a single cable with 2 wires have to be used, via which video, audio, power, and data are sent. In many cases, you can even continue to use the cables from your old door intercom!

The Juno video station is the control center of your video door intercom. On the brilliant 7 "touchscreen you can see live videos in front of the door, view the automatically taken photos of missed visitors, and open the door with a tap of your finger. Up to 4 Junos can be distributed and connected throughout the house - so you can not only Control your door from different rooms but at the same time have a powerful intercom system in the house! Call individual door stations directly, make announcements to all participants, or send messages with the integrated messenger!

Power Supply C-6001
The module C-6001 supplies your video door intercom with power and ensures the smooth functioning of your devices. Thanks to a holder for DIN rails, it can be easily installed in a switch box in the basement.

Camera with 170° Ultra Wide-Angle Lens
Words are often not enough in everyday life. With the video function of the Evida outdoor station, you can see for yourself. The viewing angle of the ultra-wide-angle camera is an enormous 170 °. The camera covers almost the entire horizontal and vertical, and you can see visitors who are standing next to and under the camera. For comparison: the viewing angle of the human eye is only approx. 60 °. Even if Evida is installed in an unfavorable position, e.g. beveled, gives you a full overview of the entrance area.

Door Opening via RFID
The RFID function makes keys unnecessary and allows the quick and contactless opening of the front door - an authorized chip is simply held to the station. Up to 320 different RFID chips can be quickly connected to Evida and deleted just as quickly, for example in the event of a loss. If a card is lost, it is simply blocked. With a conventional lock, the complete locking system would have to be replaced to prevent a security breach. Children and seniors in particular benefit from the simple operation and high security of RFID technology.

See Missed Visitors
A photo of every ringing visitor can be taken on request. Even after a long absence, you can track exactly who rang the doorbell. The photos are stored in the internal memory or on a microSD card up to 32 GB and can be viewed on the monitor and any standard computer.

Leave Voice Messages
Juno enables the communication between residents and visitors, even when no one is at home: visitors can be greeted with a voice message and, in return, leave a voice message themselves. This can then be easily monitored on the monitor.

Intercom Function
Several monitors can be connected to form an intercom system in order to exchange voice and text messages with each other. In this way, spaces that are far apart can be connected, e.g. the kitchen with the home cinema or the living room with the workshop. If desired, this function can also be used in apartment buildings and then lets neighbors exchange voice and text messages. Leave and listen to voice messages So you won't miss a thing, even when you are away: visitors can be greeted with a voice message and in return leave a voice message themselves. This can then be easily monitored on the monitor.

Connection of Floor Bells
An indispensable feature for apartment buildings: A separate story bell can be connected for each tenant in order to ring a single apartment from the front door.

Can Be Expanded with BUS Modules
The range of functions of your door intercom can be massively expanded with the optionally available Balter BUS modules. The MultiCam module allows the connection of up to 16 cameras to easily monitor large areas from the monitor.
With the light module, you can conveniently control the lighting of the staircase or garden via your monitor.

Works with Motion Detectors
Motion detectors can be connected directly to the monitor. If movement is detected, Juno can react with several pre-programmed actions: the light can be switched on, a recording can be triggered or an audio alarm can be sounded. Of course, you can deactivate these functions at times you choose.

For Up To 32 Households
Juno can be installed in apartment buildings with up to 32 parties. Each living unit can use up to 4 individual Juno monitors.

1x BALTER EVIDA Graphite RFID Stainless Steel Door Station for 1 Participant Surface
5x RFID Key + 2x Master Card (DELETE and ADD)
1x BALTER JUNO 7" 2-Wire BUS Video Station
1x BALTER Main Power Distributor, 2-Wire BUS Technology, Power Supply For up to 6 Monitors and 2 Door Stations - BUS-C6001
1x User Manual
Farbe: Graphit, Weiss
Stromverbrauch: 0,8W (Standby) / 3W (Betrieb)
Gewicht (Monitor): 0.8 kg
Abmessungen (Monitor): 234mm (B) x 139mm (H) x 19mm (T)
Funktionen (Monitor): Fotos verpasster Besucher sehen, Besuchernachrichten anhören, Messenger, Unterstützt Etagenklingeln, Unterstützt Bewegungsmelder, Interkom, Bis zu 16 Kameras anschließbar*, Lichtsteuerung* (*mit separatem Modul)
Stromverbrauch (Monitor): 0,37W (Standby) / 8W (Betrieb)
microSD Karten: Bis zu 32 GB
Interkom-Funktion: Ja
Touchscreen Technologie: Kapazitiv
Bildschirmgröße: 7 Zoll Farb-TFT
Bildschirmart: Touchscreen
Verkabelung (Monitor): 2-Draht BUS
Befestigungsart (Monitor): Aufputz
Material (Monitor): Plexiglas
Schutzklasse: IP54
Abmessungen Frontpanel: 120mm (B) x 220mm (H)
Material: Edelstahl
Stromversorgung: 24V DC
Betriebstemperatur / Luftfeuchtigkeit: -30°C bis +60°C
Mikrofon und Lautsprecher: Integriert
Freisprechfunktion: Ja
Beleuchtetes Namensschild: Ja
RFID-Funktion: Ja
Funktionen: Sprachnachrichten von Besuchern, Klingelsignal-Weiterleitung an Mobil- und Festnetztelefone* (*mit separat erhältlichem Modul)
Tag/Nacht Umschaltung: Automatisch/Immer an/Aus
Kameramodul: 170° Weitwinkel-Kamera
Technologie: 2-Draht BUS
Montageart: Aufputz
Türöffneranschluss an der Türstation: 12V DC (max. 280mA über die Türstation)
Blickwinkel: 170 Grad Ultra Weitwinkelobjektiv
Teilnehmer/Wohneinheit: 1 Familienhaus
Stromversorgung (Monitor): 20 - 28V DC
